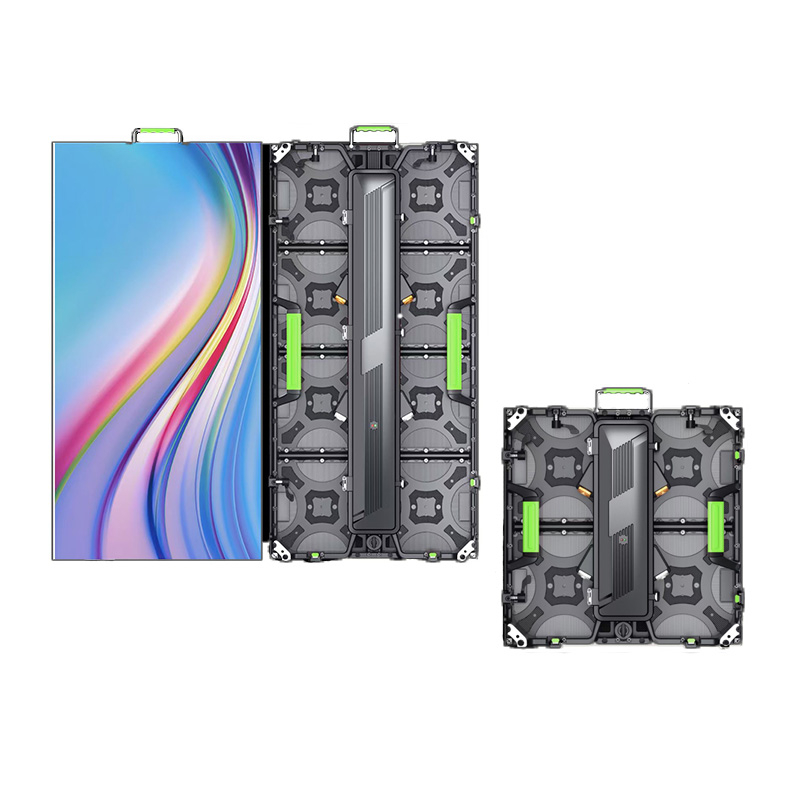

Indoor Stage LED Rental Display – High Refresh Rate, Fast Installation, Professional Event Solution

Pixel pitch	P1.95	P2.604	P2.976	P3.91
Module size (mm)	250×250	250×250	250×250	250×250
Module pixels (dots)	128×128	96×96	84×84	64×64
Scanning mode (S)	1/32	1/32	1/28	1/16
Physical density (dots)	262,144	147,928	112,896	65,536
LED packaging	SMD1515	SMD1515	SMD2020	SMD2020
Refresh frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840
White balance (CD/㎡)	800	750	800	800
Cabinet size (mm)	500×1000	500×1000	500×1000	500×1000
Cabinet pixels (dots)	256×512	192×384	168×336	128×256
Cabinet weight (Kg)	11	11	11	11
Average power (W)	160	160	160	192
Maximum power (W)	480	480	480	576
Viewing distance (°）	140	140	140	140
The Best View （M）	2-20	3-20	3-20	4-30
Working voltage （V)	AC100-240V	AC100-240V	AC100-240V	AC100-240V
Working temperature (℃）	-20～+60	-20～+60	-20～+60	-20～+60
Protection Grade	IP31	IP31	IP31	IP31

Pixel pitch	P1.95	P2.604	P2.976	P3.91
Module size (mm)	250×250	250×250	250×250	250×250
Module pixels (dots)	128×128	96×96	84×84	64×64
Scanning mode (S)	1/32	1/32	1/28	1/16
Physical density (dots)	262,144	147,928	112,896	65,536
LED packaging	SMD1515	SMD1515	SMD2020	SMD2020
Refresh frequency (Hz)	≥3,840	≥3,840	≥3,840	≥3,840
White balance (CD/㎡)	800	750	800	800
Cabinet size (mm)	500×500	500×500	500×500	500×500
Cabinet pixels (dots)	256×256	192×192	168×168	128×128
Cabinet weight (Kg)	6.5	6.5	6.5	6.5
Average power (W)	160	160	160	192
Maximum power (W)	480	480	480	576
Viewing distance (°）	140	140	140	140
The Best View （M）	2-20	3-20	3-20	4-30
Working voltage （V)	AC100-240V	AC100-240V	AC100-240V	AC100-240V
Working temperature (℃）	-20～+60	-20～+60	-20～+60	-20～+60
Protection Grade	IP31	IP31	IP31	IP31

Global application cases

The video content is based on actual customer project site feedback and real-time factory production footage, truly recording the entire process of each screen from manufacturing to lighting.
