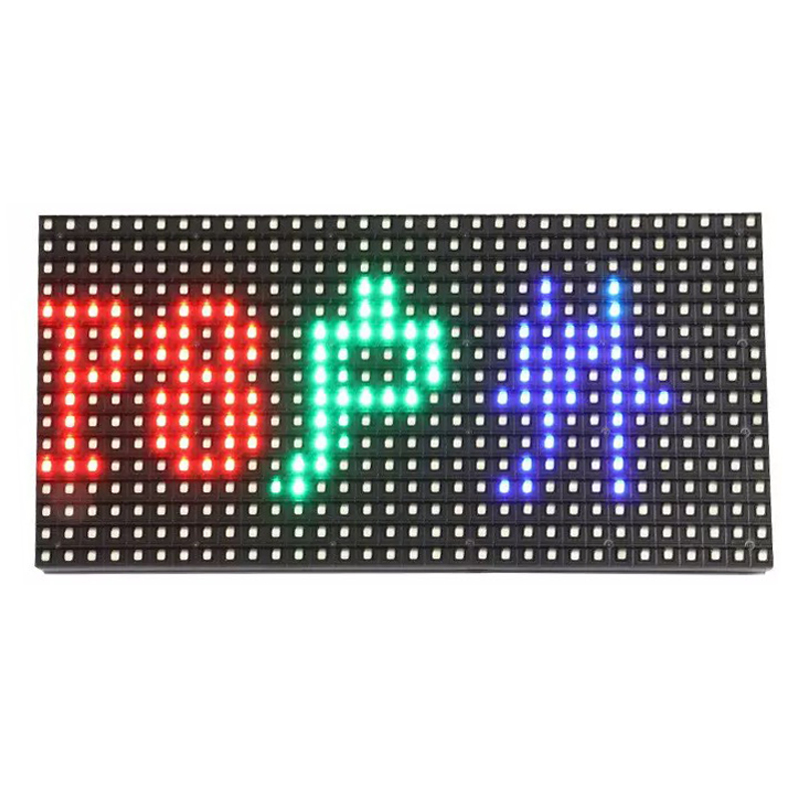

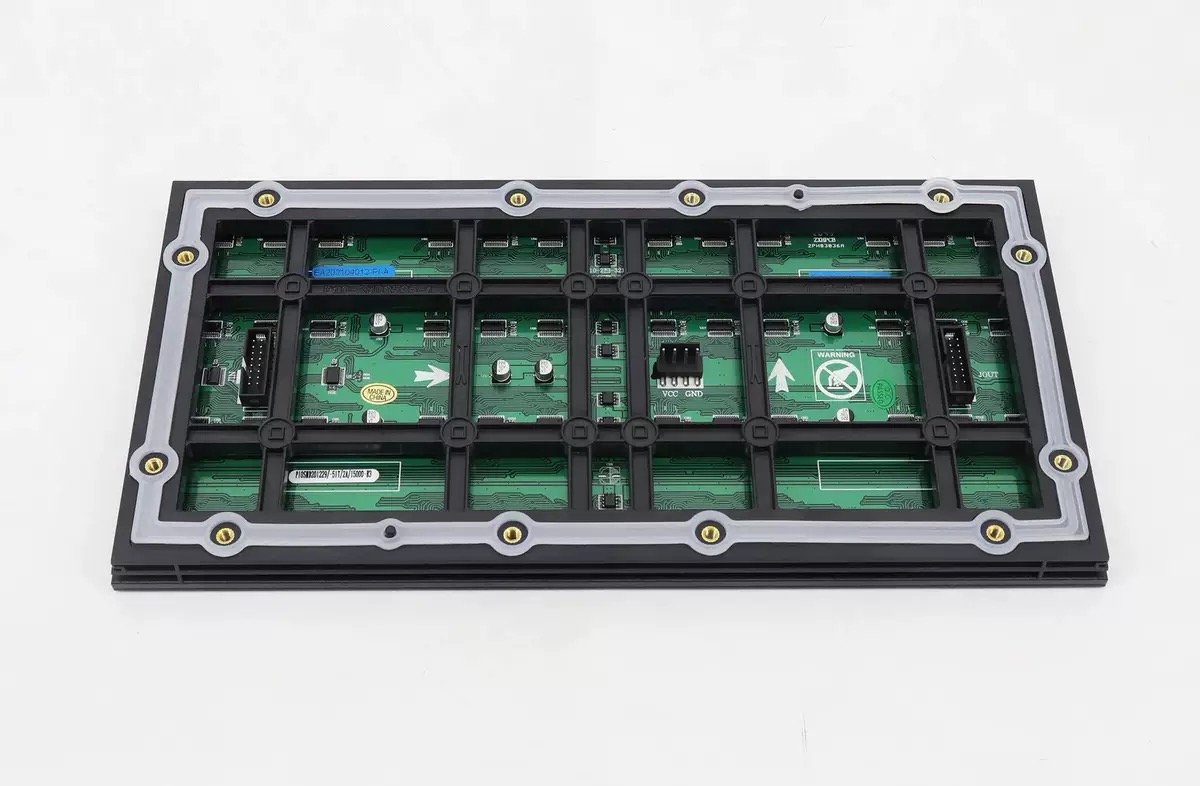

Outdoor P8 LED Display Module

I. Installation Precautions

1. Frame Design

• Installation Methods: Magnetic/snap-in installation; supports floor-standing, wall-mounted, or suspended mounting.

• Frame Material: Recommend hot-dipped galvanized steel structure (thickness ≥2.5mm), corrosion-resistant treatment required at welding joints.

• Flatness Requirement: Surface flatness deviation ≤3mm/m² (P8 pixel pitch allows minor tolerance).

2. Waterproofing & Cooling

• Waterproofing Design:

  • Apply waterproof sealant (e.g., Dow Corning 732 silicone) around module edges.

  • Reserve drainage holes (diameter ≥15mm) at the bottom of the cabinet.

  • Recommended Dual Sealing: Module mask + cabinet waterproof layer.

• Cooling Solutions:

  • Forced Air Cooling: Axial fan (airflow ≥1500m³/h installed on the upper back of the cabinet).

  • Built-in Air Conditioner: Single 3P AC controls ≤25m² screen area (recommended for ambient temperatures >45°C).

3. Power & Signal Wiring

• Power Connection:

  • Each module requires independent DC 5V power supply; power cable specification ≥4.0mm² (copper core, to reduce voltage drop).

  • Main power line: Three-phase five-wire system (L1/L2/L3/N/PE); grounding resistance ≤3Ω (lightning protection).

• Signal Connection:

  • Use NovaStar-specific HUB75 ribbon cables to connect modules and receiving cards. Ensure secure connections.

  • Transmission Distance:

    • Cat6 Ethernet: ≤100m (no repeater).

    • Single-mode fiber: ≤20km (recommended for long distances).

II. Commissioning with NovaStar

1. Control System Setup

• Recommended Hardware:

  • Main Controller: NovaLCT-T Pro / NovaPro HD

  • Receiving Card: NovaA8-A / NovaDVI-HD

• Transmission Protocol: HUB75 signal + Cat6 Ethernet / single-mode fiber

2. Software Configuration

• Step 1: Resolution Matching

  • Open NovaLCT/NovaStudio and set the sender card output resolution to match the total LED screen resolution.

• Step 2: Refresh Rate Setting

  • NovaStar recommends a refresh rate ≥3840Hz (acceptable for outdoor advertising scenarios).

• Step 3: Color Calibration

  • Perform pixel-by-pixel calibration using NovaStudio to ensure ΔE ≤3.0 (P8 allows minor tolerance).

• Step 4: Brightness Adjustment

  • Adjust brightness automatically or manually based on ambient light (supports 0–100 levels).

3. Commissioning Steps

1. Power-off Inspection:

   • Connect all power and signal cables with power off; use a multimeter to test for short circuits.

2. Upload Configuration:

   • Upload resolution, refresh rate, and color gamut settings to the NovaStar main controller.

3. Power-on Test:

   • Display "Red/Green/Blue/White" test patterns to check dead pixel rate (<0.0003‰, P8 allows slight tolerance).

   • Monitor internal temperature (≤50°C) and power status via NovaStudio.

4. Calibration Optimization:

   • Run NovaStudio to calibrate brightness uniformity (≥90%).

   • Adjust color temperature to target value (e.g., 6500K standard white balance).

III. Common Issues & Solutions

IV. Maintenance & Care

Routine Maintenance

• Clean module surfaces with a soft cloth and anhydrous alcohol to prevent dust buildup and heat dissipation issues.

• Use NovaStar monitoring software to check power/signal status weekly.

Annual Inspection

• Test brightness uniformity (≥90%) and color consistency (ΔE ≤3.0).

• Inspect waterproof seals and drainage hole functionality (prior to rainy season).

Long-term Storage

• Store in humidity <60%, temperature 0°C–30°C, away from direct sunlight.

• Power on modules every quarter for 1 hour to prevent capacitor aging.

V. Applications

Suitable for outdoor large billboards, plaza displays, stadiums, and other long-distance viewing scenarios. Integrate with NovaStar control systems for high-definition video playback (supports 1080P/4K), multi-zone displays, and remote monitoring.
