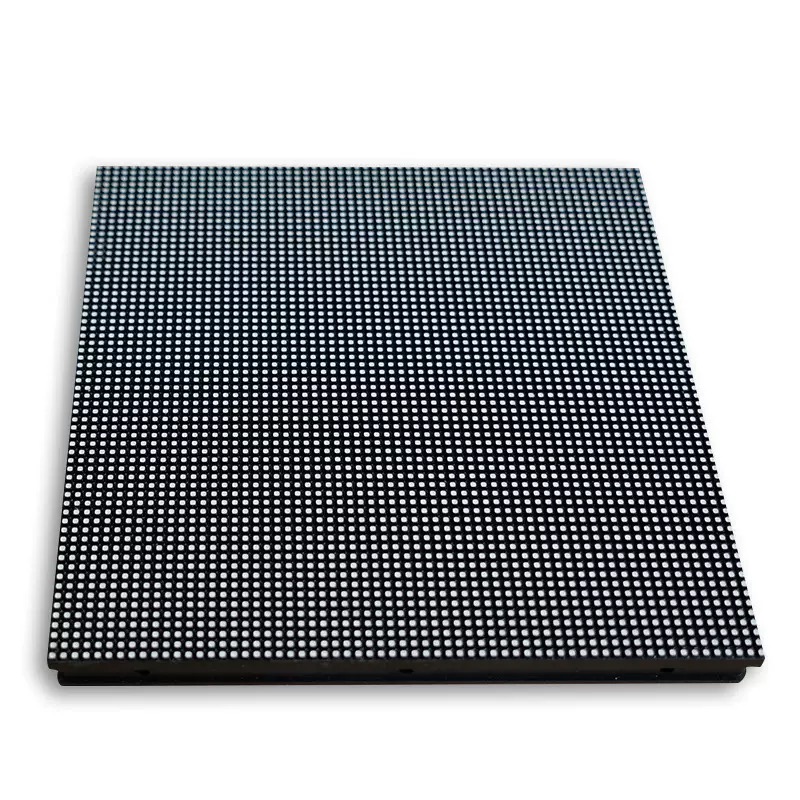

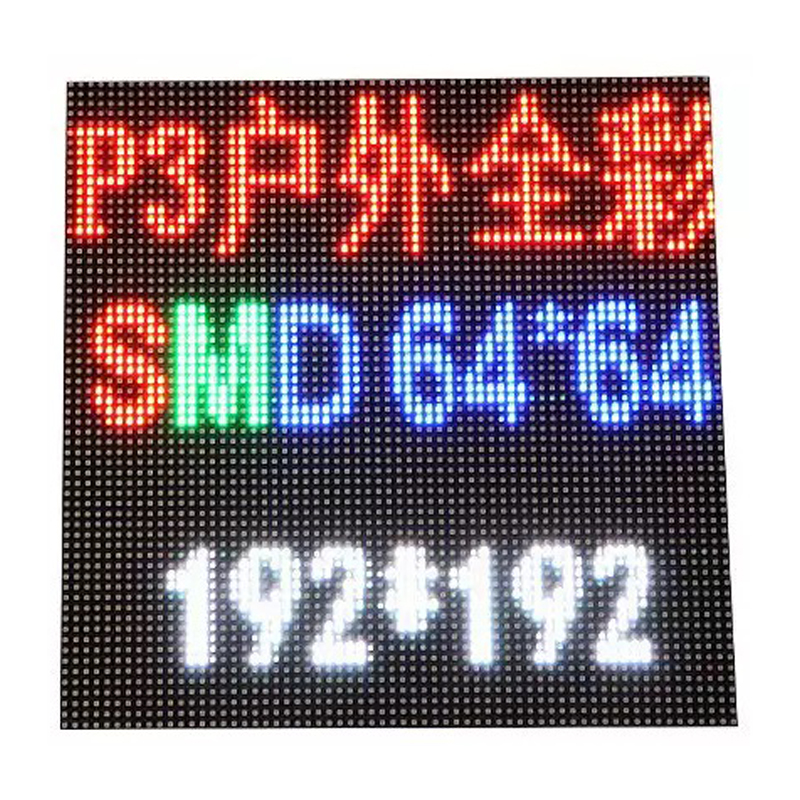

Outdoor P3 LED Display Module

I. Core Features

1. High Brightness and Clarity

• Brightness Advantage: With a brightness of 5000–6000 cd/m², it adapts well to bright environments (e.g., midday sunlight), ensuring clear and visible images.

• Small Pixel Pitch Design: A pixel pitch of 3mm (P3) makes it suitable for close-range viewing (viewing distance: 3–50 meters), ideal for applications such as advertising screens and information displays.

2. Excellent Environmental Adaptability

• Waterproof and Dustproof: IP65/IP67 protection rating effectively resists heavy rain, salt fog, and dust, making it suitable for complex outdoor environments like airports and highways.

• Temperature Resistance: Wide temperature range (-30°C to +70°C) allows adaptation to extreme cold, heat, and large day-night temperature fluctuations.

• Anti-Aging Materials: The housing is made from ASA engineering plastic with UV resistance lasting ≥8 years, maintaining shape and color during long-term outdoor use.

3. High Reliability and Long Lifespan

• Theoretical Lifespan: ≥100,000 hours (approximately 11.4 years under continuous 24-hour operation).

• Low Luminous Degradation and Dead Pixel Rate: LED luminous decay ≤15% within 3 years; dead pixel rate <0.0002‰ (less than two per million).

• Stable Power Supply: Unit board power supply: 5V/40A; screen power supply: 220VAC/50Hz (with ±10% voltage fluctuation tolerance).

4. Smart Dimming and Low Power Consumption

• Automatic Brightness Adjustment: Automatically adjusts brightness (2000–6500 cd/m²) based on ambient light, reducing degradation caused by high-brightness operation.

• Average Power Consumption: 200–250W/m²; peak power consumption ≤1000W/m², achieving significant energy savings.

5. Easy Installation and Maintenance

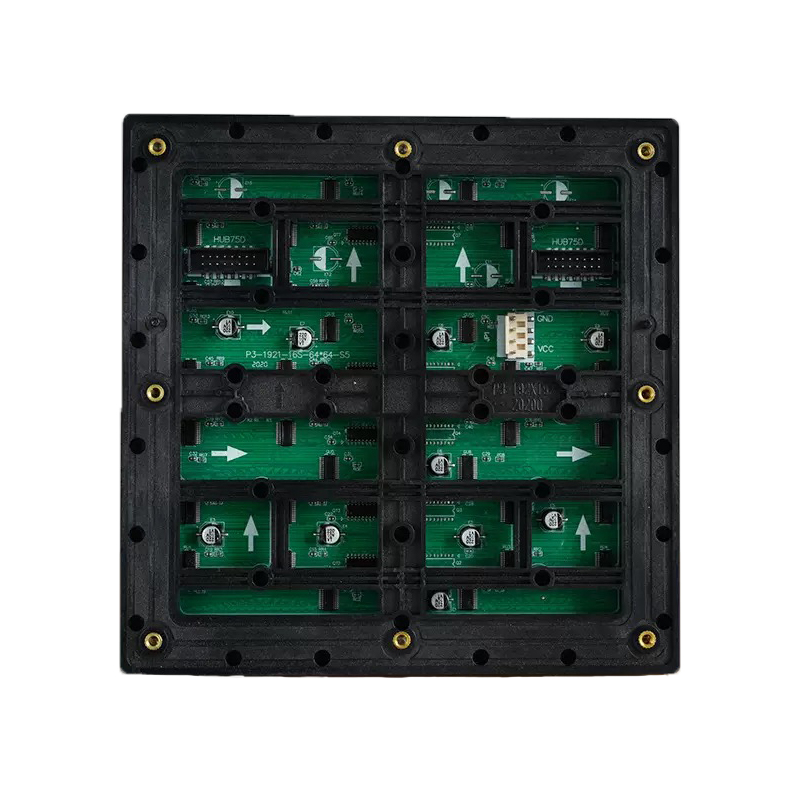

• Modular Design: The 192×192mm unit boards support quick assembly with seams <1mm, enabling seamless display.

• Standardized Interface: HUB75 interface compatible with mainstream control systems, supporting synchronous control (DVI, RGB signal input).

• Simple Maintenance: Clean the surface and drainage holes quarterly; inspect power and signal cables annually to extend service life.

II. Application Scenarios

• Advertising Media: Outdoor advertising screens, commercial district LED displays, capable of showing dynamic videos and graphic ads.

• Public Information Release: Real-time display of flight info at airports, train schedules at stations, and municipal announcements.

• Cultural & Entertainment: Scoreboards in sports venues, concert backdrops, interactive plaza screens.

• Transportation Guidance: Highway message signs, bus stop displays, parking guidance systems.

III. Summary of Technical Advantages

IV. Example Configuration

Module Quantity:

Take a display screen of 6.5m (width) × 3.75m (height) as an example; calculate the number of unit boards required:

• Width: 6.5m ÷ 0.192m ≈ 33.86 → 34 modules (net screen width: 6.528m)

• Height: 3.75m ÷ 0.192m ≈ 19.53 → 20 modules (net screen height: 3.84m)

• Total Resolution:
  Width: 34 × 64 = 2176 pixels
  Height: 20 × 64 = 1280 pixels

Power Configuration:

• Unit Board Power: 16W/module × (34 × 20) = 10,880W

• Total Power: Approximately 11kW; requires 220VAC/50Hz power system and distribution cabinet.

Control System:

• Synchronous Control: Requires DVI graphics card + main control card + fiber optic transmission (supports up to 100m network cable or 20km single-mode fiber).

V. Summary

Outdoor P3 192×192mm modules offer high brightness, small pixel pitch, IP65/IP67 waterproof rating, and a lifespan exceeding 100,000 hours, making them a benchmark product in the field of outdoor displays. Their modular design, smart dimming capability, and low power consumption provide high cost-effectiveness and reliability in advertising, transportation, public information, and other scenarios, positioning them as an ideal choice for outdoor LED display systems.
