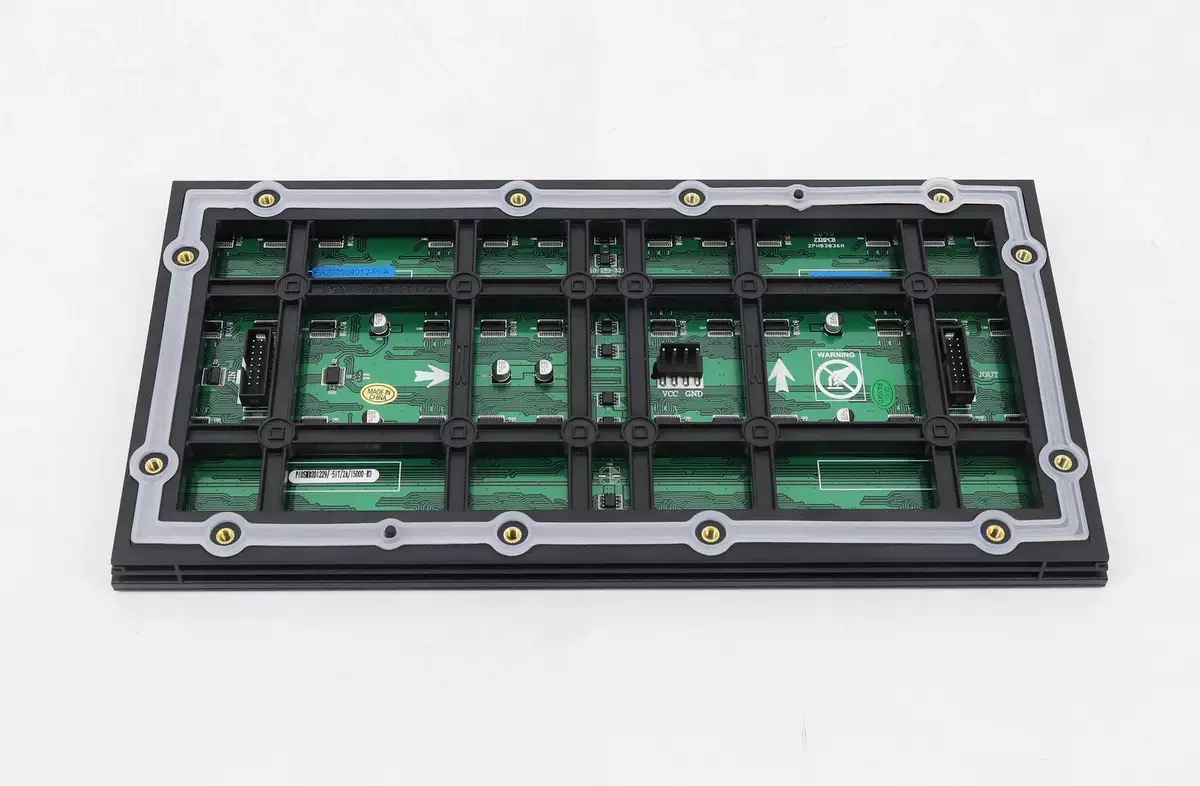

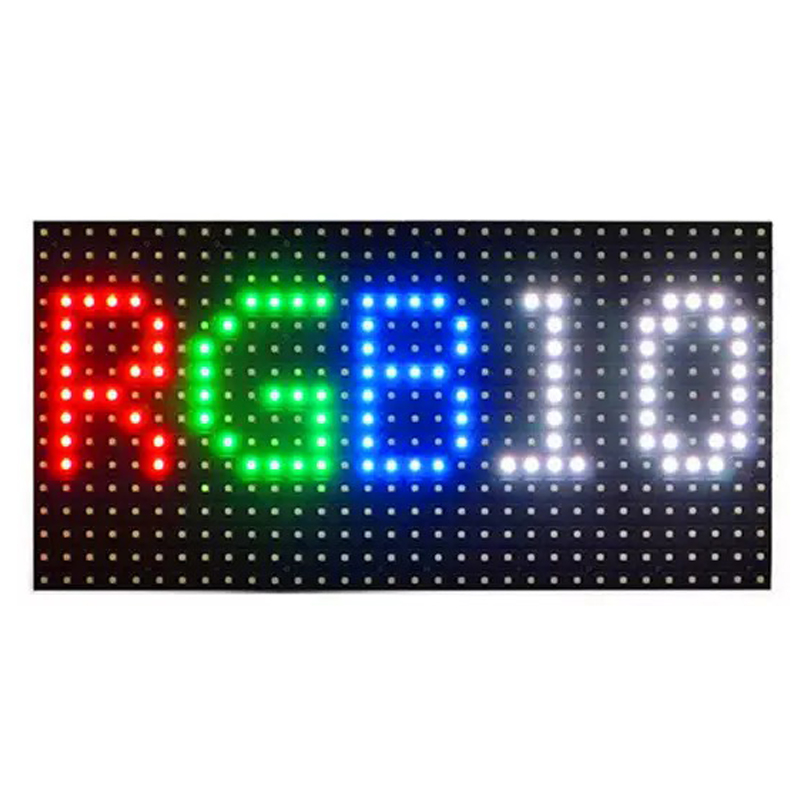

Outdoor P10 LED Display Module
For custom orders and bulk discounts, contact our sales team
$7.00
Key Features
Large Size Adaptability:
320×160mm size reduces module count for large outdoor screens, lowering installation complexity.
High Brightness & Visibility:
≥5,500 cd/m² brightness ensures clarity under strong light; supports automatic brightness adjustment (0–100%).
Wide Color Gamut:
Supports sRGB/Rec.709 color space; adjustable color temperature (2,000K–9,500K) for ads and events.
Durability Design:
IP65 rating, UV-resistant PC mask for outdoor use (rain, high temperature, dust).
III. Installation & Compatibility
Installation Methods: Magnetic/snap-in; floor-standing, wall-mounted, or suspended.
Control System Compatibility:
Supports NovaStar, Linsn, Colorlight systems.
Recommended with NovaStar NovaA8-A receiver card or NovaPro HD controller.
Signal Transmission:
HUB75 ribbon cable interface; supports Cat6 Ethernet (≤100m) or single-mode fiber (≤20km).
IV. Applications
Ideal for large outdoor advertising screens, stadium scoreboards, plaza information displays, and stage backdrops. Supports HD video playback (1080P/4K), dynamic graphics, and remote control.
I. Basic Specifications
Category | Parameter | Value |
|---|---|---|
Physical Features | Module Size | 320mm × 160mm |
Pixel Pitch | 8mm | |
Resolution | 40 (Width) × 20 (Height) = 800 pixels | |
Pixel Density | 15,625 dots/m² | |
Pixel Composition | 1R1G1B (Full Color) | |
Module Weight | ≤1.5kg | |
Display Performance | Brightness | ≥5,500 cd/m² (White Balance Condition) |
Color Temperature | 2,000K–9,500K Adjustable (Supports Calibration) | |
Refresh Rate | ≥1,920Hz–3,840Hz | |
Gray Scale Level | 16bit (65,536 Levels) | |
Viewing Angle | Horizontal 140°, Vertical 120° | |
Electrical Specifications | Operating Voltage | DC 5V ±5% |
Power Consumption | Average 40W/Module, Peak 60W/Module | |
Protection Rating | IP65 (Outdoor Dustproof & Waterproof) | |
Operating Temperature | -20°C to +50°C |
