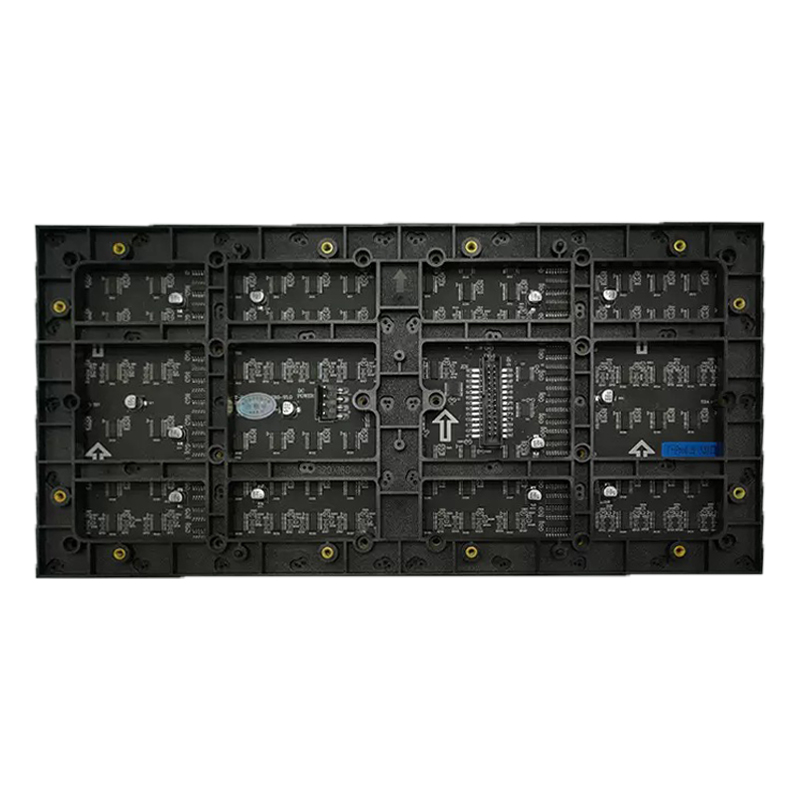

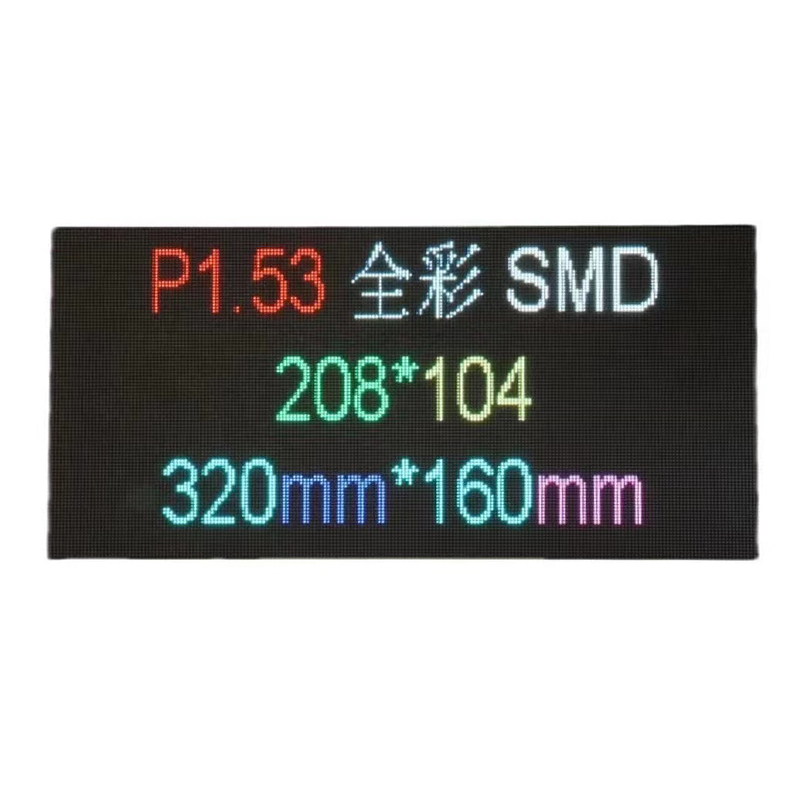

Indoor P1.53 LED Display Module
For custom orders and bulk discounts, contact our sales team
$61.00
XYG Brand – Cost-Performance & Quality Advantages
1. Cost-Performance Advantage (Compared to Mainstream Brands)
Comparison Dimension | XYG |
|---|---|
Price Advantage | - Module price as low as ¥3,200/m²<br>- Cabinet price starts at ¥5,500/m²<br>- Up to 15–20% lower than industry average |
Cost Control | - Integrated supply chain: chip + module + control system<br>- Reduced intermediate costs and improved efficiency |
Customization Capability | - Supports both SMD and COB technology<br>- Rapid response to customized needs (e.g., curved displays, special sizes) |
2. Technical & Quality Advantages
Technical Parameter | XYG Performance |
|---|---|
Core Performance | - Refresh rate ≥ 3840 Hz<br>- White balance brightness ≥ 500 cd/m²<br>- Color gamut ≥ 120% NTSC |
Reliability Metrics | - Lifespan ≥ 100,000 hours<br>- Dead pixel rate ≤ 0.001‰<br>- Protection level options: IP40 / IP65 |
Process & Structure | - Supports front maintenance SMD and seamless COB拼接<br>- Cabinet flatness error ≤ 0.05 mm |
Certifications & Testing | - Certified by CE, RoHS, CNAS (Public Security Bureau Testing)<br>- 100% aging test (>72 hours) |
3. Where Does XYG Deliver High Cost-Performance?
1) Cost-Sensitive Projects
High image quality with limited budget:
Suitable for small-to-medium command centers, corporate exhibition halls, and retail stores. The ¥3,200/m² modules can meet high-resolution requirements while saving over 30% in budget.Fast deployment needs:
Standardized modules and rapid delivery shorten project cycles (1–2 months vs. 3–6 months for competitors).
2) Quality-Sensitive Projects
Long-term stable operation scenarios:
With a lifespan of 100,000 hours (~11 years continuous use) and a dead pixel rate of ≤0.001‰, the screen ensures minimal failures.Complex environmental adaptability:
IP65 dustproof and waterproof versions are suitable for humid and dusty environments (e.g., industrial monitoring rooms), where most competitors only offer IP40 standard protection.
4. XYG Quality Assurance Measures
Full Industry Chain Control
Self-developed chips, modules, and control systems reduce quality risks from third-party components.Strict Quality Control Process
100% aging test under high temperature and humidity for more than 72 hours
Pixel-by-pixel detection (optical calibration + electrical testing) to ensure consistency
After-Sales Service System
Over 30 service centers nationwide offering 24/7 support
Free warranty: 3 years for modules, 5 years for cabinets (industry average: 2–3 years)
5. Typical Application Scenario Cases
Scenario | XYG Solution Advantages |
|---|---|
Corporate Exhibition Hall | Achieves seamless splicing with ¥5,500/m² cabinets, saving up to 20% compared to competitors, with image quality rivaling premium brands |
Urban Traffic Monitoring Room | IP65 protection + 3840Hz refresh rate adapts to complex environments and high-speed video streams, with failure rates below industry average |
Retail Chain Stores | Front-service SMD design allows single module repairs at just ¥100–300, significantly reducing maintenance costs |
Educational Institutions | 120% NTSC color gamut + low latency supports HD teaching and interactive presentations, ensuring no graininess even during close-up viewing |
6. Summary: Why Choose XYG?
✅ Cost-effective pricing: Up to 20% lower than market average, yet offers premium configurations like COB
✅ Reliable quality: Meets international certifications and rigorous testing standards, matching top-tier brands
✅ Flexible adaptability: Dual-process support (SMD/COB) and fast customization to meet diverse needs
✅ Strong after-sales support: Localized service + extended warranty reduces long-term maintenance costs
Recommended Scenarios:
Budget-limited but high-image-quality projects (small-to-medium command centers, exhibition halls)
Urgent deployment needs (emergency engineering, pop-up installations)
Long-term stability required (industrial monitoring, commercial retail, education)
If you need an official quote, technical datasheet, or customized solution, please contact XYG directly through their global sales channels!
Parameter | Specification (Typical Values) | Notes |
|---|---|---|
Pixel Pitch | 1.53 mm | Ultra-dense pixel distribution suitable for close viewing (recommended ≥1.5 meters) |
Module Size | 320×160 mm (Standard Design) | |
Cabinet Size | 640×480 mm (Standard Cabinet Structure) | Cabinet design reduces the number of seams, improving flatness |
Pixel Composition | 1R1G1B (SMD 1515 Package) / COB Triple Integration Process | SMD supports front maintenance; COB enables seamless splicing |
Refresh Rate | ≥3840 Hz | Eliminates flicker, ideal for high-speed video or real-time monitoring |
White Balance Brightness | ≥400–600 cd/m² (Supports Automatic Adjustment) | Adaptable to various environmental lighting conditions; can be as low as 200 cd/m² in energy-saving mode |
Viewing Angle | Horizontal ≥140°–170° / Vertical ≥110°–170° | Wide viewing angles with minimal distortion |
Color Gamut Coverage | ≥120% NTSC / Ultra-wide Color Gamut Technology | True-to-life color reproduction, meeting international broadcasting standards |
Lifetime | ≥100,000 hours (LED lifespan) | Dead pixel rate ≤0.001‰, ensuring no significant degradation over its entire lifespan |
Protection Level | IP40 (Indoor Dry Environment) / Optional IP65 Waterproof & Dustproof | Cabinet design can optionally include IP65 waterproof and dustproof protection |
Control Method | Synchronous Control (supports HDMI/DP/VGA/SDI/DVI signal inputs) / Asynchronous Control (local playback) | Supports intelligent brightness adjustment (manual/auto/software control) |
