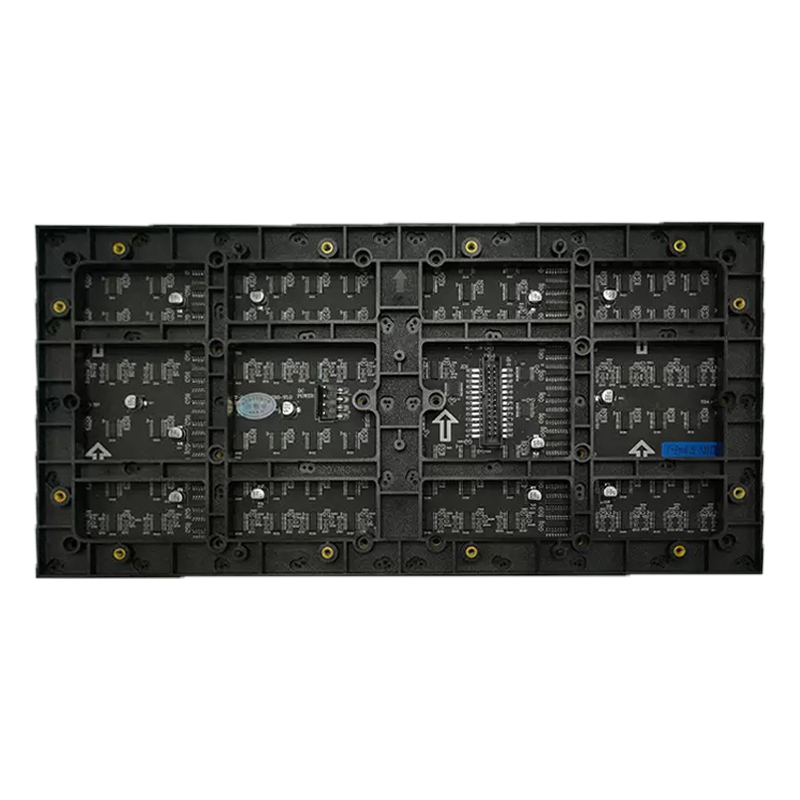

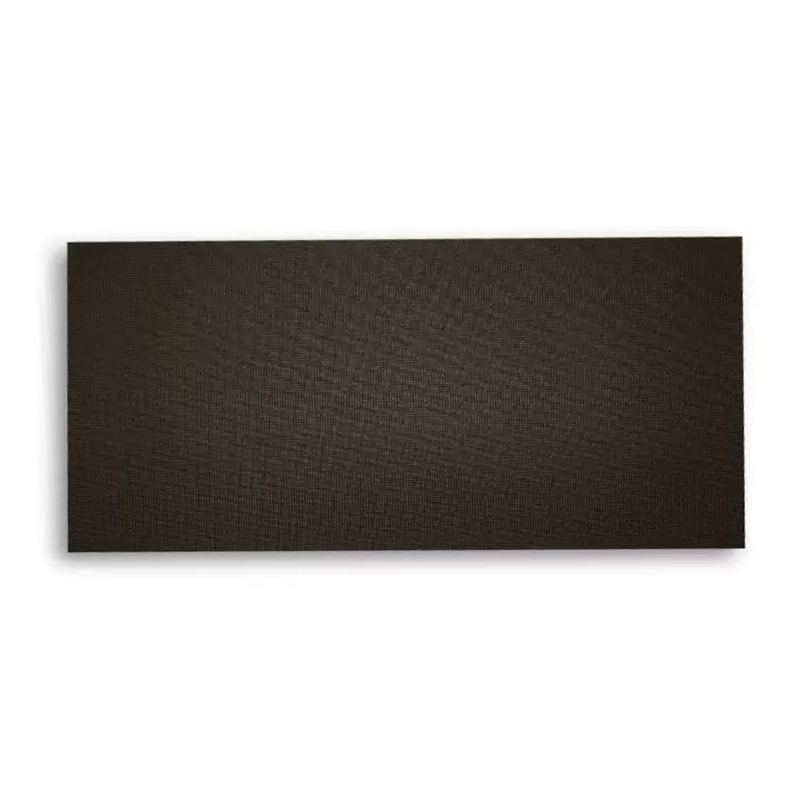

Indoor P1.25 LED Display Module
For custom orders and bulk discounts, contact our sales team
$110.00
XYG Indoor P1.25 LED Display Module
I. Product Overview
The XYG Indoor P1.25 LED display module is designed to meet the demands of high-end markets, offering an ultra-high-definition visual experience combined with exceptional cost-performance value. Compared to other brands in the market, XYG optimizes its entire industrial chain—from chips to control systems—achieving effective cost control while ensuring premium product quality.
II. Core Advantages
1. Outstanding Cost-Performance Ratio
Competitive Pricing:
The P1.25 module starts at ¥3,200/m², and cabinet pricing begins at ¥5,500/m², which is 15–20% lower than industry averages, helping customers significantly reduce budget expenditures.Flexible Customization Services:
Supports both SMD and COB dual-process technologies, enabling rapid response to customized needs such as curved拼接 and special dimensions, providing more flexible design options.
2. Superior Quality Compared to Industry Standards
High Resolution & Clarity:
With a pixel pitch of just 1.25 mm and pixel density reaching 640,000 pixels/m², the module ensures no graininess even during close-range viewing, ideal for applications like meeting rooms and exhibition halls.Excellent Optical Performance:
Refresh rate ≥ 3840 Hz
White balance brightness: 400–800 cd/m²
Color gamut coverage ≥ 120% NTSC
Ensuring true-to-life color reproduction and smooth dynamic image transitions without trailing effects.
Long Service Life:
LED lifespan ≥ 100,000 hours, with a dead pixel rate ≤ 0.001‰, ensuring long-term stable operation and minimal maintenance costs throughout its lifecycle.Rigorous Quality Control:
All products undergo over 72 hours of aging tests, and are certified under multiple international standards including CE, RoHS, and CNAS (Public Security Bureau Testing), guaranteeing that every unit meets strict quality requirements before delivery.
III. Recommended Application Scenarios
Corporate Conference Centers:
Offers seamless拼接 big screen solutions to enhance meeting efficiency and communication effectiveness.Command & Dispatch Centers:
Supports multi-signal input and intelligent brightness adjustment, suitable for long-term use in complex environments.Commercial Display Spaces:
Combines HD image quality with flexible installation methods, ideal for creative and interactive displays.Educational Institutions:
Enables playback of HD teaching content, improving interactivity and engagement in classrooms.
IV. After-Sales Service
Global Service Network:
Provides 24/7 customer support worldwide.Extended Warranty Period:
3 years of free warranty for modules
5 years of free warranty for cabinets
Exceeding the industry average, offering greater peace of mind for users.
V. Summary
Choosing the XYG Indoor P1.25 LED display module means enjoying cutting-edge technology that delivers an immersive visual experience, all at a highly competitive price point with premium product quality and service. Whether you're a professional user pursuing ultimate visual performance or a business focused on cost-effectiveness, XYG is your ideal choice.
XYG Indoor P1.25 LED Display Module Technical Specifications
I. Basic Parameters
Item | Specification/Parameter |
|---|---|
Pixel Pitch | 1.25 mm |
Pixel Density | ≈640,000 pixels/m² |
Recommended Viewing Distance | ≥1.2 meters (adjust based on content clarity and ambient light) |
Drive Method | Constant Current Drive |
Packaging Technology | SMD 1010 / Optional COB |
II. Physical Structure Parameters
Item | Specification |
|---|---|
Module Size | 320mm × 160mm |
Resolution | 256×128 dots |
Cabinet Material | Aluminum alloy precision die-casting, lightweight, high strength, good heat dissipation |
Flatness Tolerance | ≤0.05 mm |
Seam Precision | ±0.02 mm, seamless splicing, no visible seams |
III. Optical Performance Parameters
Item | Typical Value |
|---|---|
Refresh Rate | ≥3840 Hz - 7680 Hz |
Grayscale Levels | 16-bit / 65536 levels |
White Balance Brightness | 400～800 cd/m² (adjustable; can be as low as 200 cd/m² in energy-saving mode) |
Color Gamut Coverage | ≥120% NTSC |
Color Representation | Supports HDR and wide color gamut technology, natural and smooth color transitions |
Viewing Angle | Horizontal ≥170° / Vertical ≥160° |
IV. Reliability and Protection
Item | Description |
|---|---|
Operating Temperature | 0°C to +50°C |
Storage Temperature | -20°C to +60°C |
Operating Humidity | ≤80% RH, no condensation |
Protection Rating | IP40 (standard) / Optional IP65 (waterproof and dustproof) |
MTBF (Mean Time Between Failures) | ≥10,000 hours |
Lifespan | ≥100,000 hours (LED lifespan) |
Dead Pixel Rate | ≤0.001‰ |
V. Control and Signal Input
Item | Description |
|---|---|
Control Method | Synchronous control system (supports main controller + receiver card architecture) |
Signal Input Interfaces | HDMI / DP / SDI / VGA / DVI (supports multiple video source inputs) |
Communication Protocol | Supports Gigabit Ethernet, fiber optic transmission, remote centralized control |
Brightness Adjustment | Supports manual adjustment, automatic light sensing adjustment, software adjustment to adapt to different lighting environments |
Compatible Software Platforms | Supports mainstream LED playback systems (such as Novastar, Linsn, Colorlight, etc.) |
VI. Installation and Maintenance
Item | Description |
|---|---|
Installation Methods | Wall-mounted, suspended, rack-mounted, curved splicing, etc. |
Maintenance Method | Front maintenance design, supports quick replacement of individual modules without dismantling the entire screen |
Cabinet Structure | Standardized modular design, convenient for transportation, installation, and future expansion |
Heat Dissipation Method | Natural air cooling or intelligent fan-assisted cooling (optional) |
